Datos del producto:
|
| Frecuencia de funcionamiento: | Multifrecure | Sensibilidad: | Otro |
|---|---|---|---|
| Tipo: | para herramientas de medición del agua | Usuario: | Adultos |
| Soporte personalizado: | OEM | Clasificación IP: | N / A |
| Material: | N / A | Diámetro de bobina de búsqueda: | N / A |
| Garantía: | 2 años | Modelo NO.: | Detector de agua subterránea PQWT-TC300 |
| Profundidad de medición: | Detector de agua de 300 metros | Rango de conversión automática del instrumento: | 0mv-2000mv |
| Precisión de medición: | 0.01MV | Frecuencia de medición: | Banda única, banda triple, frecuencia múltiple |
| Tamaño de pantalla LCD: | 7 pantalla táctil de la pulgada HD | Conversión A/D: | 1Msps de 12 bits |
| Impedancia de entrada: | por ejemplo 10MΩ | Fuente de alimentación: | Batería incorporada de 4000 mAh |
| Sitio web oficial: | www.pqwtcs.com | ||
| Resaltar: | PQWT TC300 water detector 300m range,portable water detector high accuracy,PQWT water detector with warranty |
||
300m Long Range High Accuracy Portable water Detector water detection
We have water detector for the different depth 100/150/300/500/600/1200/1500m.
If you need more product information, please contact wechat/whatsapp 00 8618817121520
![]()

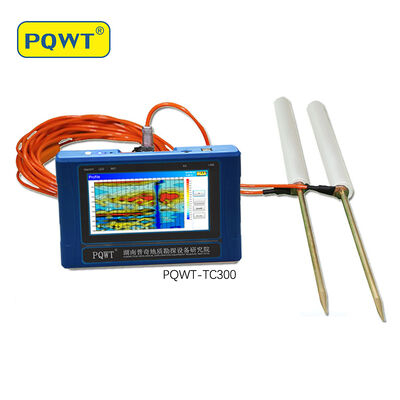

PQWT-TC300.300M deep underground water detector
The Instrument called as (Natural Electric Field Frequency Selection System) geophysical instrument, shortly known as frequency system.
Instrument working on the principle of electrical difference of natural earth magnetic field, the several different frequencies of electromagnetic field changes is the law to study the underground field material changes to solve the Geological problems.
The measurement data is Self-potential, and the unit is millivolt.
|
Model |
PQWT-TC300 |
|
Depth |
300 Meters |
|
Frequency |
Single, Triple, 40frequency |
|
Channel |
6 |
|
System |
PQWT |
|
LCD |
Industrial 7-inch HD touchscreen |
|
Units of Measurement |
Vs(mV) |
|
Measurement Range |
0mV-1500mV |
|
Stand-by Time |
8-10 hours |
|
Power Supply |
Battery Model #26650; 3.7V 4000mAh Rechargeable lithium battery |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Is it difficult to operate and make the graph?
The instrument is easy to operate, you can find the share how-to video on Youtube
(URL: http://www.pqwtcs.com/NewsDetail.aspx?nid=3643&classid=273)
, and we will send you the detailed operation manual via email. If you have some basis of computer operating, generally it only needs 2hour to manage it.
300m Long Range High Accuracy Portable Gold Mine Detector water detection
![]()
