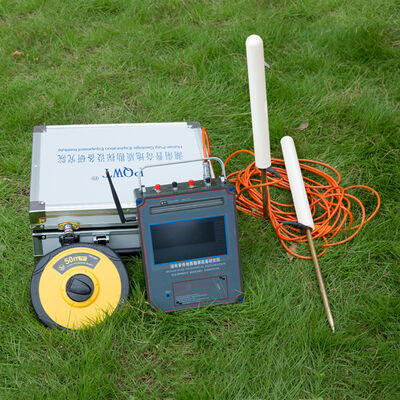

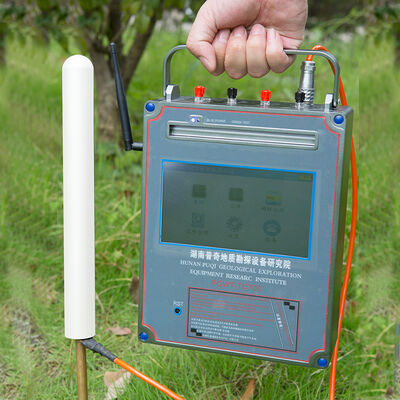

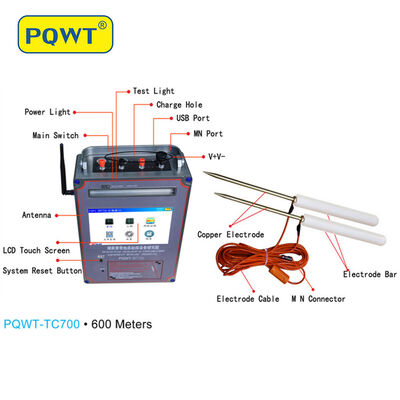

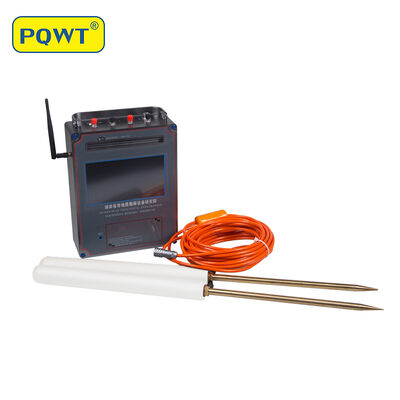

PQWT-TC700 Geophysical Survey Detection System
Auto-mapping deep underground borehole water well detector with 600m detection depth capability.
Key Benefits
- Find water sources before borewell drilling to save time and costs
- Applicable to multiple and complex terrain exploration
- Automatic on-site mapping with immediate results
- Profile mapping displays aquifer locations and depths
- Expert remote assistance for well location analysis
- Easy operation - inexperienced users can learn in 5 minutes
- Selectable detection depths according to project requirements
Product Overview
The PQWT TC700 deep underground water detector is engineered for high-accuracy detection at depths of 150, 300, 500, and 600 meters. This advanced system utilizes sensitive detection methods to identify optimal drilling locations, significantly reducing costs and time for deep water well drilling projects.
Technology & Methodology
This geophysical prospecting instrument employs natural electric field sources as its working mechanism. By measuring natural electric field components at different frequencies on the surface, it detects resistivity contrasts between underground rocks, minerals, and groundwater. The system analyzes variations in geological bodies to identify anomalies and solve geological challenges through electrical prospecting methods.
Technical Specifications
| Warranty |
2 years |
| Type |
PQWT Deep Underground Water Detector |
| Certification |
ISO9001 |
| Customized Support |
OEM, LOGO, Package |
| Place of Origin |
China |
| Brand Name |
PQWT |
| Model Number |
PQWT TC700 |
| Detection Depth |
150m/300m/500m/600m |
| Frequency |
Single, triple, 20/40/56/68 |
| Measurement Range |
0-2000mV |
Packaging & Delivery

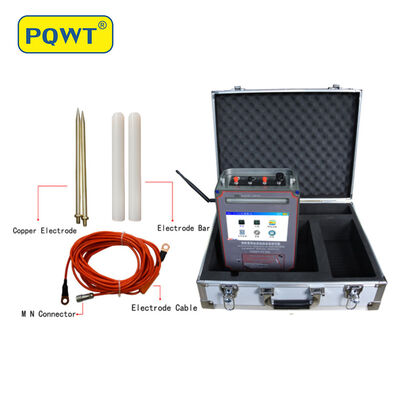

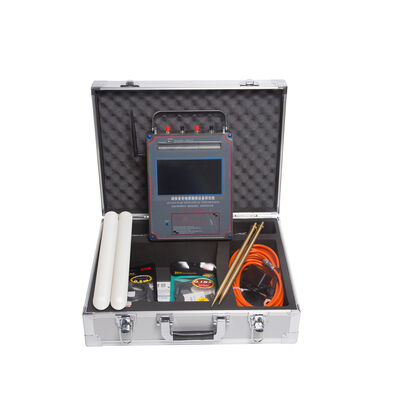

Aluminum specialized flight case + strong carton + corner guard protection
Manufacturer Profile
Hunan Puqi Geologic Exploration Equipment Institute is a leading Chinese institution specializing in R&D, manufacturing, and sales of geological exploration equipment. With over 200 staff including 16 senior engineers and 49 intermediate engineers, Puqi focuses on hydrogeological exploration, intelligent data-capture technology, and specialized technical applications. The company has completed more than 65 major research projects and holds over 117 national patents, establishing long-term cooperation with research institutes worldwide.
